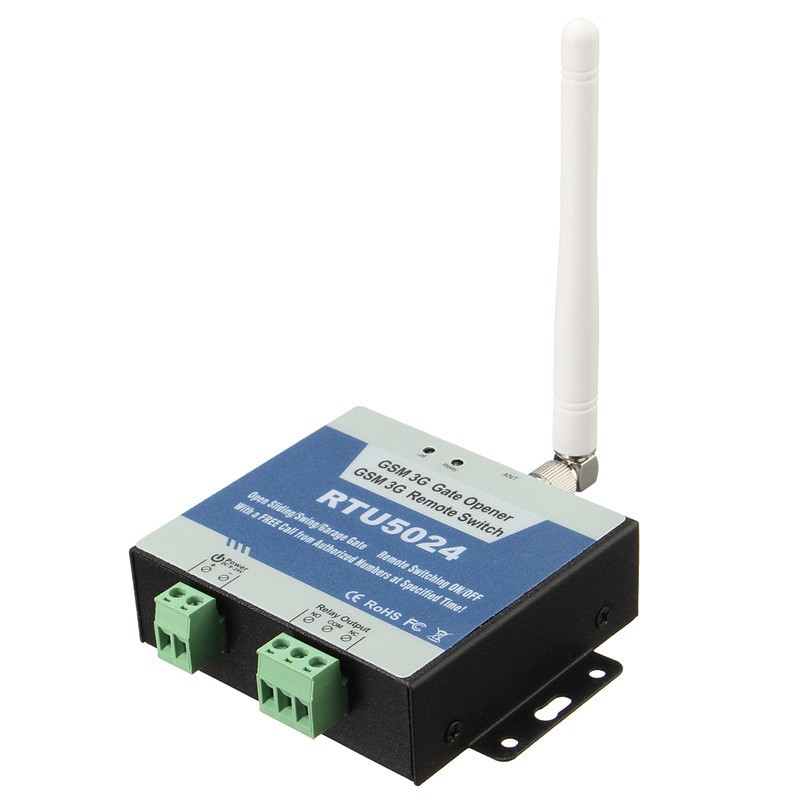

RTU5024 Gsm gate opener (We provide 2G/3G/4G Version)

The GSM Gate Opener RTU5024 is a very smart designed device which can be used for authorized door access, controlling gates, car parking systems. Actually the RTU5024 can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE call from your mobile phone.
Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener. There are no call costs, the GSM Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.

01

Description.
GSM Gate Opener, Barrier, Garage Door, Door Opener, Door access, Controlling gates, Car parking systems.

02

GSM remote controller for industrial projects.
For water pump,water tank,motor remote control,solar power remote monitor.

03 GSM alarm system for home or industrial security alarm.
For home or industrial projects alarm,burgur alarm,battery operated gsm alarm box.
04 GSM customized design for customer's requirement.
We can design GSM,GPRS,cdma,3g or 4g products for our customers.
05 Several RTU5024 versions for selection
1. Metal box and Rain proof box
2. DC12V power input and AC100-240V power input

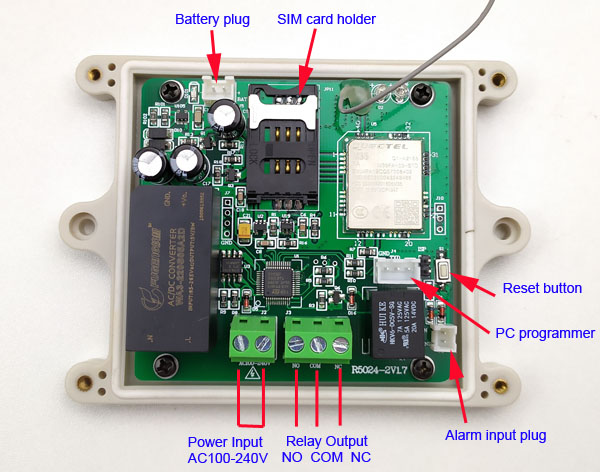

06 New features on the 2019 Version RTU5024 .
1. Maximum authorized phone numbers: 1000
2. Rechargeable battery for power failure alert
3. One alarm input on board

Quality Standards

From 2016 was supported by Android and new version 2016 was supply by both IOS and android APP and more features supported better ! We keep to upgrate our device more and more better.

For IOS app,please go to Apple APP store and search the keyword " RTU5024 "
or use this link to find the RTU5024 app link: https://itunes.apple.com/us/app/rtu5015/id1100111938?l=zh&ls=1&mt=8

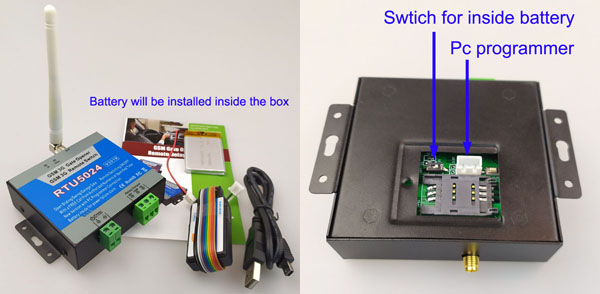

From 2019 Verion RTU5024 has the feature of the rechargeable battey for power failure alert.

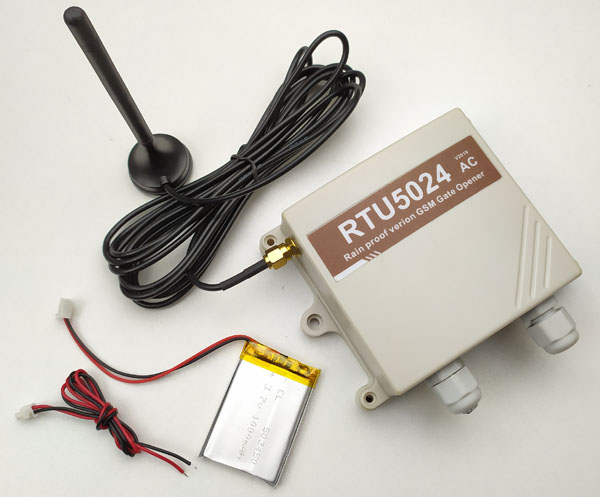

V2019 RTU5024 Water proof box version

Have the questions on the RTU5024 products ?

Need to download more files of RTU5024 Serial products?

(For Standard RTU5024, v2017 and V2019 RTU5024 and the Rain proof box type RTU5024)

Main features of RTU5024:

1. No call charges. the GSM Gate Opener rejects the call from authorized number then carrys out the turn ON/OFF action on the first 'ring';
2. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
3. Secure - Using caller ID for identification,unknown callers are ignored;
4. Can be operated from anywhere, no distance limit;
5. Add or remove users by Simple SMS Text command;
6. Up to 200 authorized phone numbers can be configured;
7. One output with relay rating 3A/240VAC for connecting the switch of the door or machines;
8. The relay action will return a SMS confirmation to the owner, this function is editable by user;

Specifications of the RTU5024:

DC Power supply:DC12V/2A
Power consumption:12V input (50mA)
Frequency range: Qual band 900/1800/850/1900Mhz
SIM Card:Supporting 3V SIM Card
Antenna:50 Ω SMA Antenna interface
Temperature range:-20-+60 °C
Humidity range:Relative humidity 90% (condensation free)
Relay Rating:3A/240VAC
Exterior dimension:110mm*90mm*40mm
Net Weight:600 g


Standard Package list of RTU5024:

GSM Gate Opener (RTU5024) X 1
GSM Antenna X 1
AC to DC Adaptor X1 (12VDC/2A)(Optional)
User Manual X 1





4G/3G/GSM RTU5024 Files
