RTU5015 Gsm gate opener

The GSM Gate Opener RTU5015 is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipments, car parking systems. Actually the GSM Gate Opener RTU5015 can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE call from your mobile phone.
Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener. There are no call costs, the GSM Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.

01

Description.
GSM Gate, Barrier, Shutter, Garage Door, Door Opener, Door access, Controlling gates, Car parking systems.

02

GSM remote controller for industrial projects.
For water pump,water tank,motor remote control,solar power remote monitor.

03 GSM alarm system for home or industrial security alarm.
For home or industrial projects alarm,burgur alarm,battery operated gsm alarm box.
04 GSM customized design for customer's requirement.
We can design GSM,GPRS,cdma,3g or 4g products for our customers.

Quality Standards

Quality Standards

All RTU5015 orders from Nov.1st, 2015 NEW Version will start to support the new functions:
Customized SMS command to ON ,OFF, or temporary On or Off the relay output !
Intelligent search function of storage number !

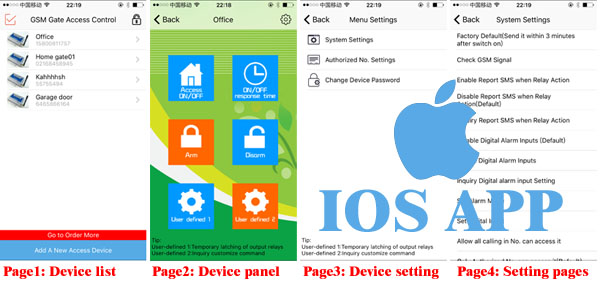

New version 2016 was supported by Android and new version 2016 was supply by both IOS and android APP and more features supported better ! We keep to upgrate our device more and more better.

1. For IOS app,please go to Apple APP store and search the keyword " RTU5015 "
or use this link to find the RTU5015 app link: https://itunes.apple.com/us/app/rtu5015/id1100111938?l=zh&ls=1&mt=8

2. For Android app,please download : Android app link

=======================================================================================

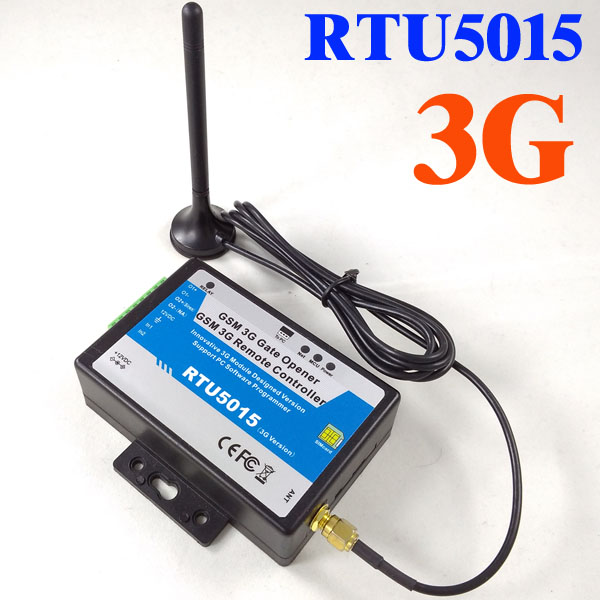

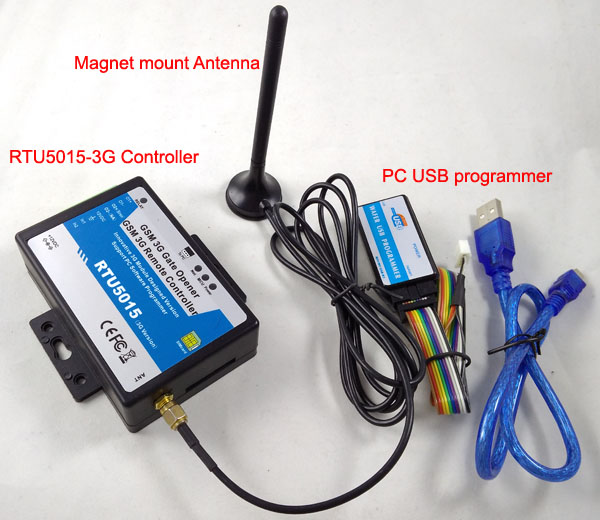

2018 Version RTU5015 3G version Frequency UMTS:

RTU5015-3G E Version: 900/2100MHz
RTU5015-3G A Version: 850/1900MHz
RTU5015-3G T Version: 850/2100MHz

Have the questions on the RTU5015 products ?

Need to download more files of RTU5015 Serial products?

Main features of RTU5015:

1. No call charges. the GSM Gate Opener rejects the call from authorized number then carrys out the turn ON/OFF action on the first 'ring';
2. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
3. Secure - Using caller ID for identification,unknown callers are ignored;
4. Can be operated from anywhere, no distance limit;
5. Add or remove users by Simple SMS Text command;
6. Up to 99 authorized phone numbers can be configured;
7. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows, when any one of them triggered, will send SMS alert message you immediately;
8. One output with relay rating 3A/240VAC for connecting the switch of the door or machines;
9. The relay action will return a SMS confirmation to the owner, this function is editable by user;

Specifications of the RTU5015:

DC Power supply:DC12V/2A
Power consumption:12V input (50mA)
Frequency range:Dual band 900/1800 MHz or 850/1900Mhz
SIM Card:Supporting 3V SIM Card
Antenna:50 Ω SMA Antenna interface
Temperature range:-20-+60 °C
Humidity range:Relative humidity 90% (condensation free)
Relay Rating:3A/240VAC
Exterior dimension:110mm*90mm*40mm
Net Weight:600 g

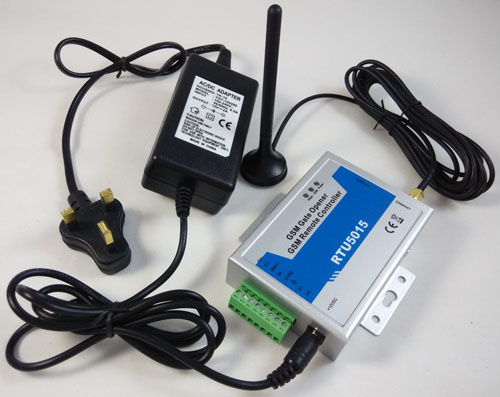

Standard Package list of RTU5015:

GSM Gate Opener (RTU5015) X 1
GSM Antenna X 1
AC to DC Adaptor X1 (12VDC/2A)
User Manual X 1



GSM RTU5015 Files
